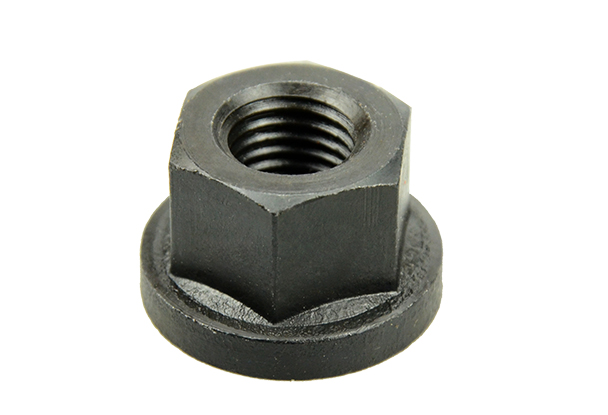

- 用途: 旋入牙杆与其他组件匹配用来固定挟持工件
- 材质；S45C，表面染黑皮膜处理
- 热处理硬度：HRC32±5°
- 产品规格: 英制 3/8”/1/2”/5/8”/3/4”7/8”/1”； 公制 M8/ M10/M12 /M14/M16/M18/M20/M24
| Order no. | A (metric) | B | C | D | E |
| FNM-12021 | M8X1.25 | 8 | 18 | 2 | 13 |
| FNM-13031 | M10X1.5 | 13 | 22 | 4 | 17 |
| FNM-14041 | M12X1.75 | 17 | 30 | 4 | 21 |
| FNM-14545 | M14X2.0 | 17 | 30 | 4 | 21 |
| FNM-15051 | M16X2.0 | 22 | 35 | 5 | 26 |
| FNM-16061 | M18X2.5 | 25 | 42 | 7 | 32 |
| FNM-17071 | M20X2.5 | 27 | 42 | 7 | 32 |
| FNM-17575 | M22X2.5 | 29 | 45 | 7 | 36 |
| FNM-18081 | M24X3.0 | 32 | 50 | 7 | 41 |
| Order no. | A (Inch) | B | C | D | E |
| FN-12021 | 5/16"-18 | 12 | 20 | 2 | 14 |
| FN-13031 | 3/8"-16 | 13 | 22 | 4 | 17 |
| FN-14041 | 1/2"-12 | 17 | 30 | 4 | 21 |
| FN-14042 | 1/2"-13UNC | 17 | 30 | 4 | 21 |
| FN-15051 | 5/8"-11 | 22 | 35 | 5 | 26 |
| FN-16061 | 3/4"-10 | 27 | 42 | 7 | 32 |
| FN-17071 | 7/8"-9 | 29 | 45 | 7 | 36 |
| FN-18081 | 1"-8 | 32 | 50 | 7 | 41 |
