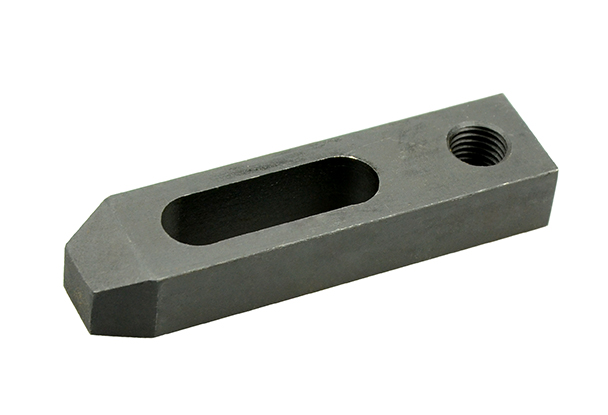

TAPPED CLAMP
-
用途: 利用压板上的公制牙孔可应用双头牙杆来固定工件 - 材质；S45C，表面染黑皮膜处理
- 热处理硬度: HRC32±5°
-
产品规格:
I1/2S 1/2M 1/2L (牙孔M12 , 中槽宽15mm)
5/8S 5/8M 5/8L (牙孔 M16, 中槽宽 18mm)
3/4S 3/4M 3/4L (牙孔 M20, 中槽宽 21mm) - Purpose: Use the tapped hole to connect with stud for fixing the work piece.
- Material: S45C, black oxide furnished
- Heat treatment: HRC32±5°
-
Product spec.:
I1/2S 1/2M 1/2L (Tapped M12 , slot width15mm)
5/8S 5/8M 5/8L (Tapped M16, slot width 18mm)
3/4S 3/4M 3/4L (Tapped M20, slot width 21mm)
| Order no. | M( thread spec.) | I(slot width) | A | B | C | D | E | F |
| TCM-84041 | M12X1.75 | 15 | 80 | 32 | 19 | 48 | 23 | 69 |
| TCM-84042 | M12X1.75 | 15 | 100 | 32 | 19 | 63 | 38 | 87 |
| TCM-84043 | M12X1.75 | 15 | 150 | 32 | 22 | 87 | 50 | 134 |
| TCM-85051 | M16X2.0 | 18 | 80 | 38 | 19 | 43 | 15 | 65 |
| TCM-85052 | M16X2.0 | 18 | 100 | 38 | 19 | 60 | 30 | 85 |
| TCM-85053 | M16X2.0 | 18 | 150 | 38 | 22 | 87 | 50 | 134 |
| TCM-87071 | M20X2.5 | 21 | 100 | 38 | 25 | 60 | 30 | 85 |
| TCM-87072 | M20X2.5 | 21 | 150 | 38 | 25 | 87 | 50 | 132 |
| TCM-87073 | M20X2.5 | 21 | 200 | 44.5 | 28.5 | 107 | 70 | 180 |
