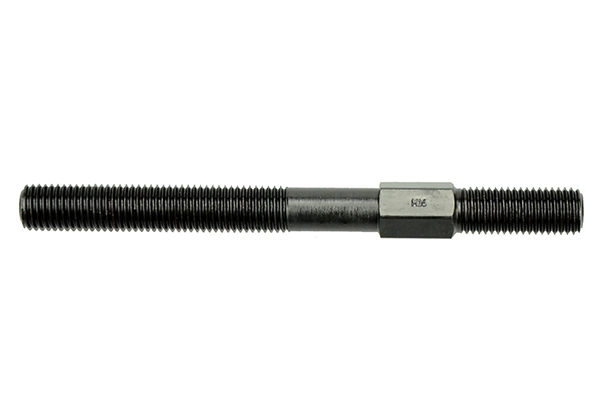

BOLT FOR INJECTION MOLD




      • 用途: 旋在塑料射出模具上匹配其他组件用以固定模具
      • 材质；S45C，表面染黑皮膜处理
      • 热处理硬度：HRC32±5°
      • 产品规格.: 英制 5/8”/3/4”7/8”/1”；公制 M12 /M16/M20/M22/M24


Purpose: Applied for injection mold plate

  • Material: S45C, black oxide furnished
  • Heat treatment：HRC32±5°
  • Product spec.: Inch size 5/8”/3/4”7/8”/1”； Metric size M12 /M16/M20/M22/M24



proimages/clamping_set/BOLT_FOR_INJECTION_MOLD_2.jpg



Part no. metric size A B C D E
BMM-74005 M12X1.75 120 30 14 20 55
BMM-74006 150 75
BMM-74007 175 90
BMM-75004 M16X2.0 100 25 17 15 55
BMM-75005 130 35 20 65
BMM-75006 155 40 25 80
BMM-75007 180 90
BMM-75008 200
BMM-75010 250
BMM-76005 M18X2.5 130 35 19 20 65
BMM-76006 155 25 80
BMM-76007 180 40 90
BMM-77004 M20X2.5 100 25 21 15 50
BMM-77005 130 35 20 65
BMM-77006 155 40 25 80
BMM-77007 180 90
BMM-77008 200 45
BMM-77010 250
BMM-77506 M22×2.5 155 40 23 20 80
BMM-77507 180 90
BMM-77508 200
BMM-78006 M24X3.0 155 40 26 25 80
BMM-78007 185 90
BMM-78008 200
BMM-78010 255



Part no. Inch size A B C D E
BM-75004 5/8"-11W 100 25 17 15 55
BM-75005 130 30 20 65
BM-75006 150 40 25 75
BM-75007 175 90
BM-75010 250 50
BM-76004 3/4"-10W 100 25 19 15 55
BM-76005 135 35 20 65
BM-76006 155 25 80
BM-76007 180 40 90
BM-76008 200
BM-76010 250 50
BM-77006 7/8"-9W 155 40 23 20 80
BM-77007 180
BM-77008 200 90
BM-78007 1"-8W 175 40 26 25 90
BM-78008 200
BM-78009 225
BM-78010 250
